The BEST Home Gym Flooring In 2026

I’ve been lifting at home since 2013. One of the VERY first things I bought was horse stall mats. These allowed me to deadlift at home and not wreck my garage floor. When I expanded my gym out from the corner to take up an entire stall of the garage, we went with MORE horse stall mats. They are the budget Home Gym Flooring of the community after all.

This worked for the next several years, but as we’ve been using the FULL garage for me, my wife, and my daughters workouts, we wanted to cover the entire garage with rubber flooring. Horse stall mats have some negatives as you add more and more to the mix, so I started looking into other options. Today I’ll share my search for The BEST Home Gym Flooring so you can skip the hours of research I did and find the right solution for you.

FAQS For Home Gym Flooring

How I Upgraded My Own Home Gym Flooring

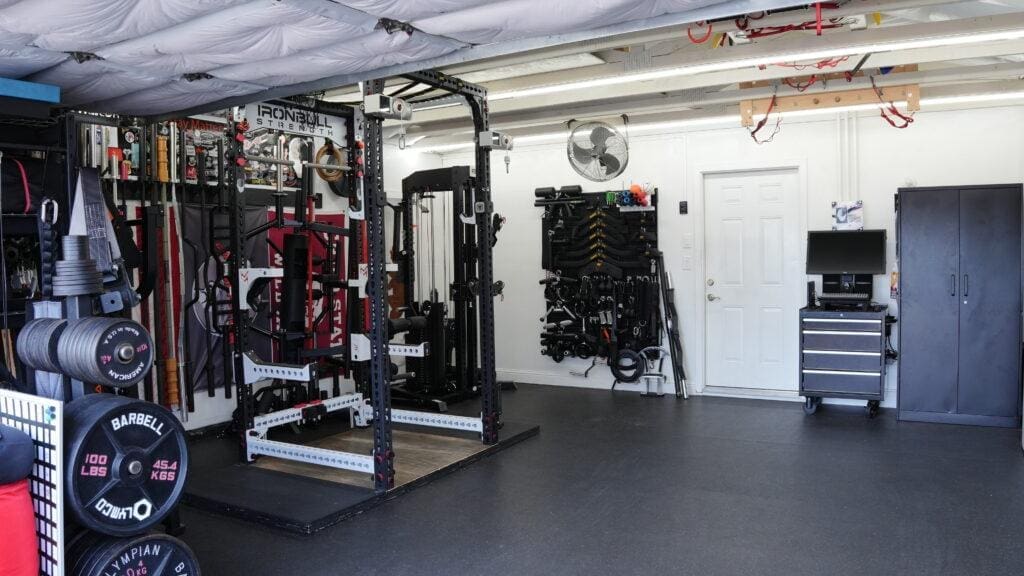

When we took the leap to V6 of The Gray Matter Lab, one of the biggest pieces we focused on was truly “finishing” the garage. I ripped everything out of the garage, painted all the walls, ceiling, studs, etc. Had a team come in and insulate the walls and ceiling. We installed a mini-split for cooling and heating, insulated the garage door, and the final piece was putting in full rolled rubber flooring.

I talked with Ashton at Freedom Fitness back and forth for awhile about this project. Living in California, most of the rubber flooring ships from the East Coast, which means a HEFTY shipping price. I really wanted to install the puzzle mats because it would be so much easier, and MUCH more economical. But because we had a large space to cover, we were covering half the garage that is kept open with flooring too, and we needed to park our car in there, we had some very specific needs.

Any Home Gym Flooring that isn’t adhered to the floor, is going to twist under the pressure of a car. Twisting leads to unwanted movement, and eventually leads to tearing. The smaller each individual flooring piece is, the lighter it is, the easier it is to twist and move with machines, exercise, and again, the car. So putting down a small 8mm puzzle piece was going to result in problems. After doing the math, Horse Stall mats would have been cheaper, but not by a ton, and were going to give us some of the same issues.

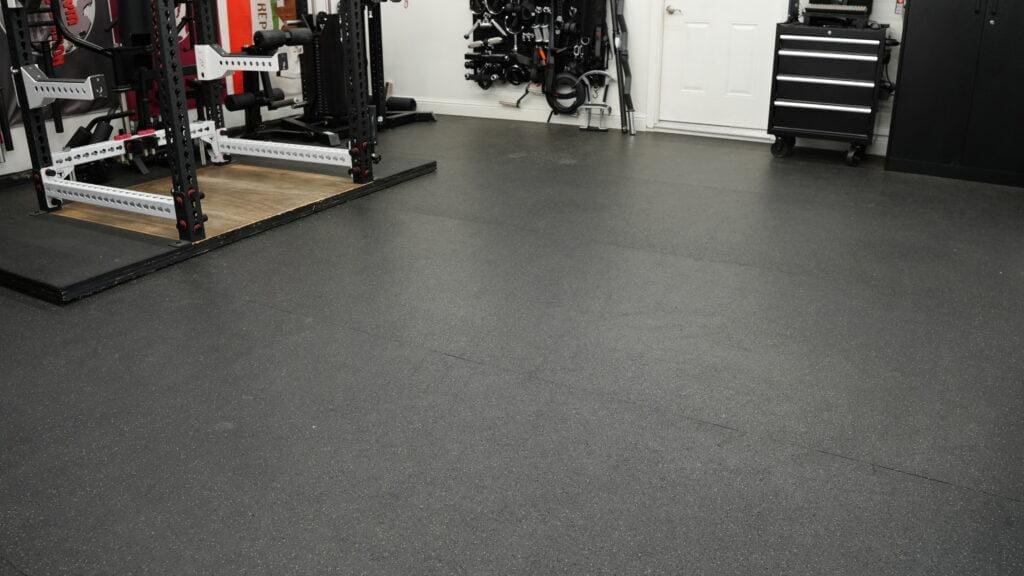

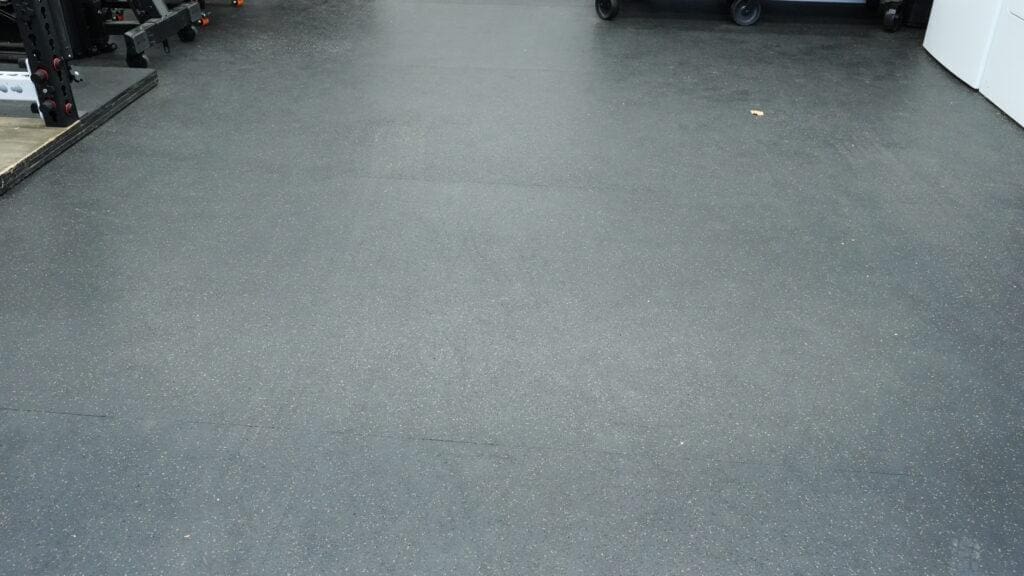

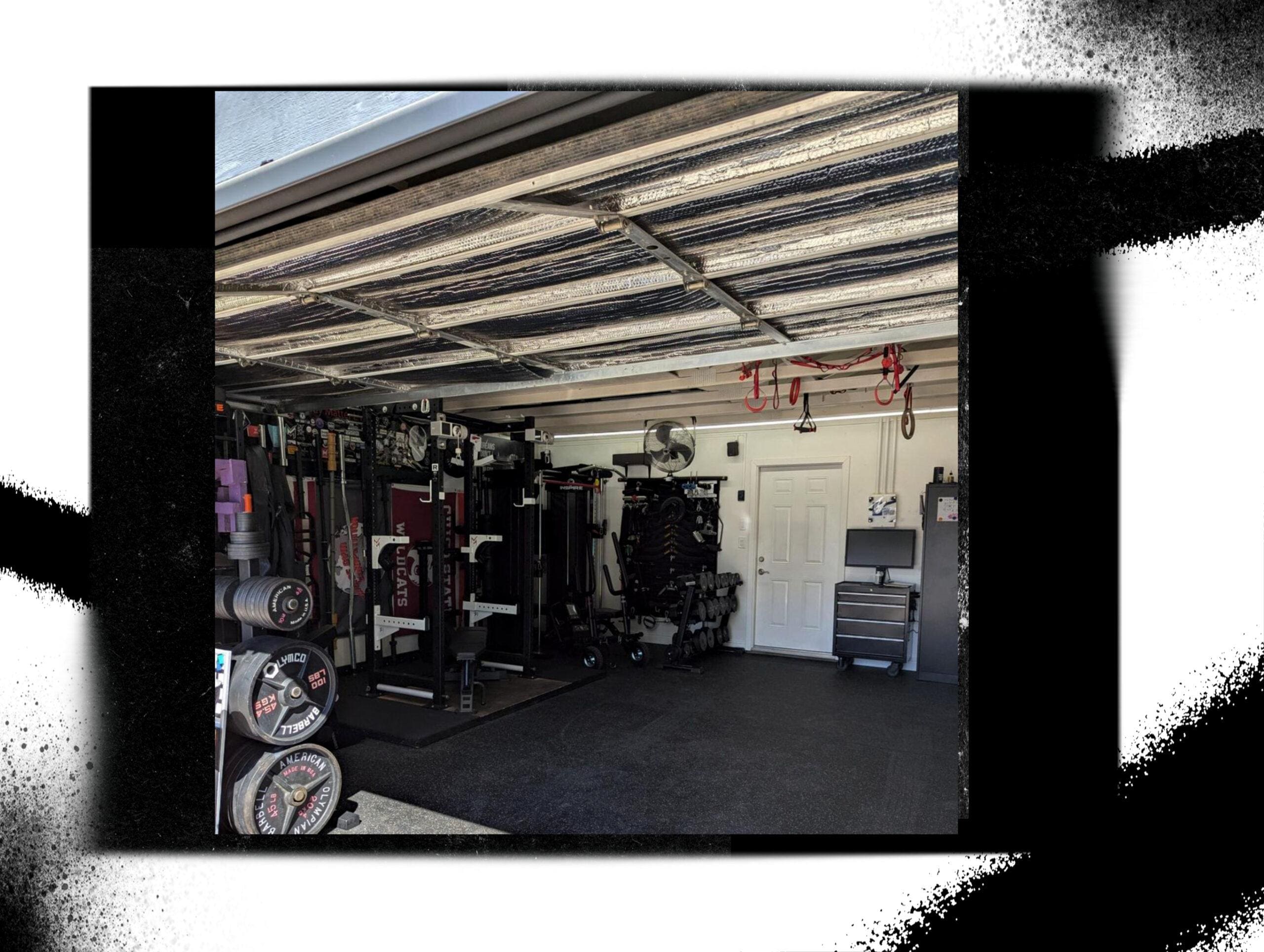

So we decided to go all in and get Rolled Rubber in 8mm rolls. These were 22ft long by 4ft wide. Our garage is about 21.25ft wide by 22ft deep. So we needed to trim close to a foot off the end of each roll, and we had to trim 2 feet off length wise of another roll (we ordered 6 total). Luckily, my neighbor who I have helped with a lot of projects, is a flooring installer. He buffed and cleaned the floor, then laid down the urethane glue, installed the flooring, cut to size, and helped me put down every heavy flat item I had on the seams to try and keep it tight.

We are now 1.5 years into the Home Gym Flooring install, and it still looks awesome. But the urethane glue alone was over $600. The project was over $2k and we got the install for free. So keep that in mind as we go.

Bad Home Gym Flooring

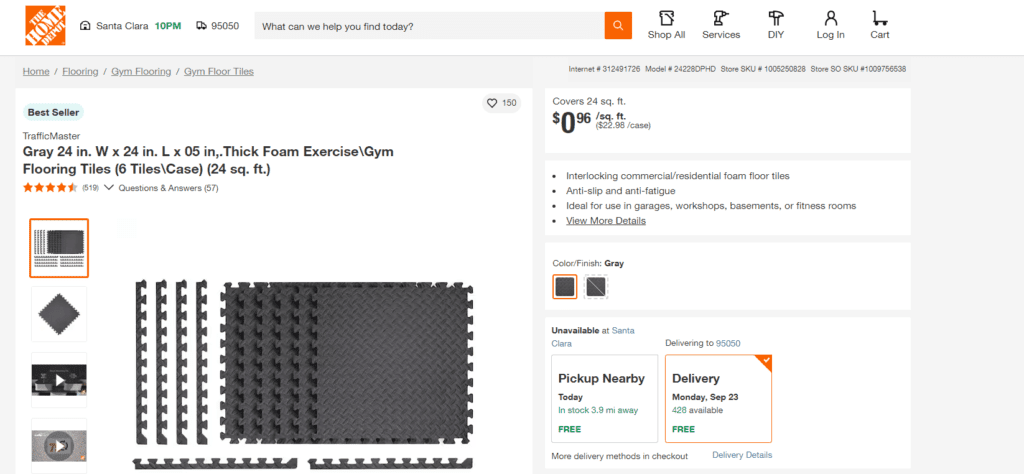

Anything that isn’t rubber, is likely a bad choice. Foam compresses, on purpose, just under your basic body weight. They use it for anti-fatigue mats. If you happen to be standing on that same mat, with a few hundred pounds on your back, you are going to bottom out. That is not good.

Foam compresses, tears, and otherwise just isn’t what we want for gym equipment. If you roll any wheels across it, it’ll likely never go back to normal. They often come in mismatched sizes from different manufacturers.

These mats are also EXTREMELY prone to tearing, especially ones with any kind of interlocking edges. They are often cheap, but not quite cheap enough to make up for their lackluster abilities.

The Best Budget Home Gym Flooring

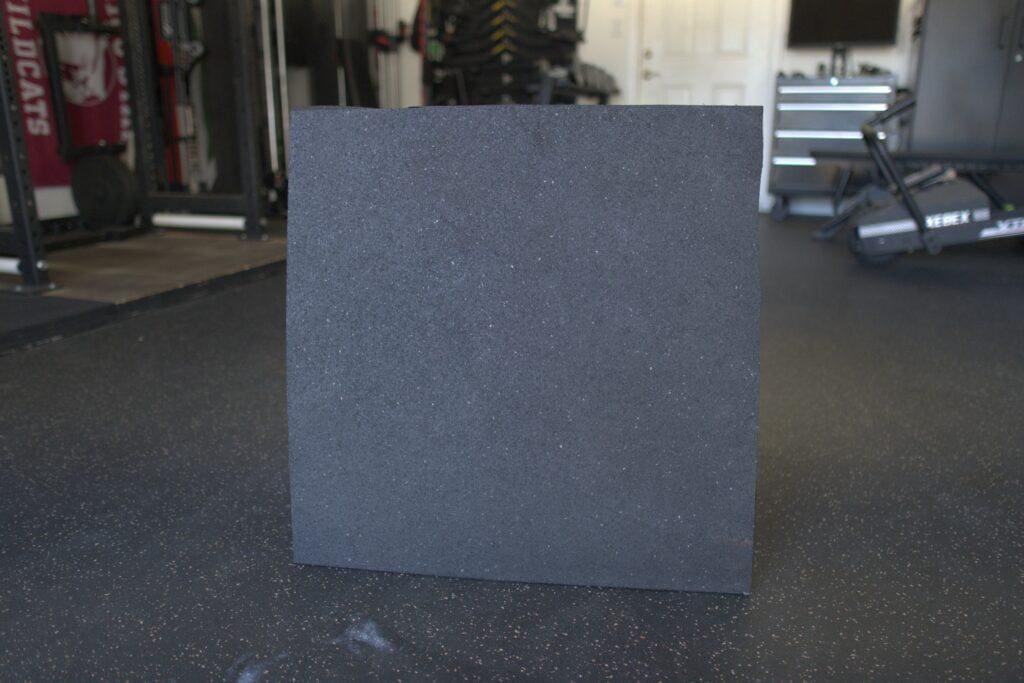

Without a doubt it is Horse Stall Mats. If you plan to cover just a few small areas with mats, these will do the trick, last a long time, and get you through your workouts safely. They are easy to find, easy to clean, you can move them around, they can be used for deadlifts, machines, all purpose flooring, and more.

Horse Stall Mats are also recycled rubber, which is environmentally conscious. Keep in mind that this also means that they are more prone to breaking apart into small pieces. You WILL have parts of your horse stall mats in the seams and cracks and underneath them, forever. They have also been known to smell fairly bad out the gate. Try to choose ones that have been outside for a bit, bring them home and hose them off while letting them air out in the driveway.

What Are Horse Stall Mats?

Horse stall mats are heavy-duty rubber mats originally designed to provide cushioning and insulation in horse stalls. Because they are heavy duty, meant to handle large loads, on top of bodily fluids, dirt, grime, and more… they because a staple in the home gym community for easy flooring solutions.

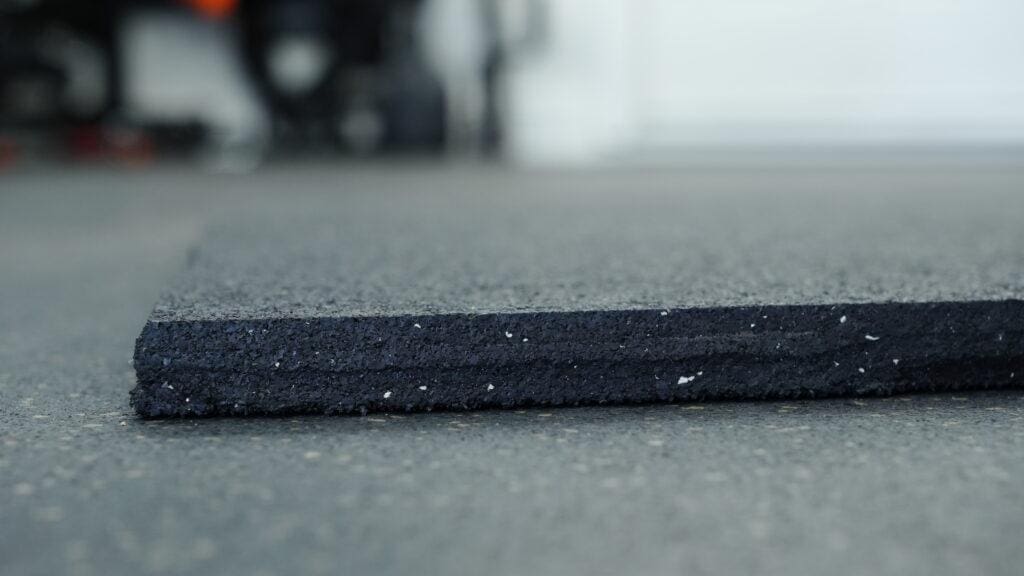

The most common Horse Stall Mats come in 3/4″ thickness, and 4ft x 6ft sizes. Keep in mind that 3/4″ is thicker than most mats “made for gyms”, but the density in these is quite a bit lower. Because they are meant to essentially be an anti-fatigue mat for horses, they have more give. This isn’t necessarily bad, just keep that in mind that we aren’t comparing apples to apples.

Horse Stall Mats can be found at most Tractor, Feed, and Farm supply stores, with Tractor Supply being the most common in the United States.

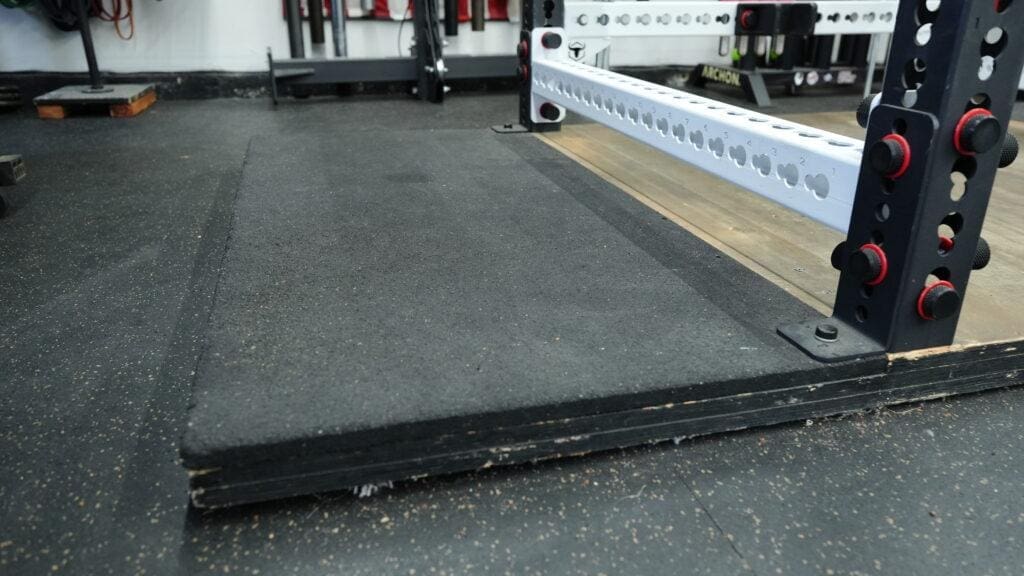

On top of being great for general purpose mats, they are also easy to cut. This means that you can fit them into corners, weird angles, use them for platforms, or simply cut them into pieces for additional coverage on concrete, outside, or anywhere else you might need it. I keep a few around for raising and lowering my deadlift set up. They are also perfect for a DIY Deadlift Platform.

Keep in mind that they come in two different types, one has a more rugged undersize, while the other has button dots. It doesn’t matter which you get, I would just recommend getting the same kind throughout. Because Horse Stall Mats are recycled rubber, there is a good chance that they aren’t perfect in terms of their dimensions, sizing, and cuts. So you will likely have some gaps, which will be made more apparent between the seasons as they grow during the hot summer months and shrink during the cold winter months.

Horse Stall Mat Tips and Tricks

These bad boys are heavy and can be difficult to move. If you have a truck, or access to one, that is the easiest way to load them up. Grab a buddy and the two of you can make quick work of a dozen of these without any issues. If you need to fit them into a car, SUV, you name it, your best bet is to roll them up like a Taquito, use some kind of strap or rope to keep it like that, and then attempt to carry it that way too. Get it most of the way there, and good to go.

When you go to cut them, use a straight edge to draw a line with chalk or make your initial cut with a blade. Then put the mat up on top of a board and it will open up the seem (the cut you just made) which will make cutting through with a nice sharp box cutter very easy. Take your time, make straight cuts, and you’ll be happy.

If you want to keep your mats from having obvious seems and gaps, you can use gorilla tape to cover the seams. It gives it a bit of a “finished” look. And if you have large open spaces where you don’t have anything holding them down, they will be prone to shifting. Use mending plates on the underside to keep that from happening. This will join multiple horse stall mats together, increasing their size, weight, and ability to stay put.

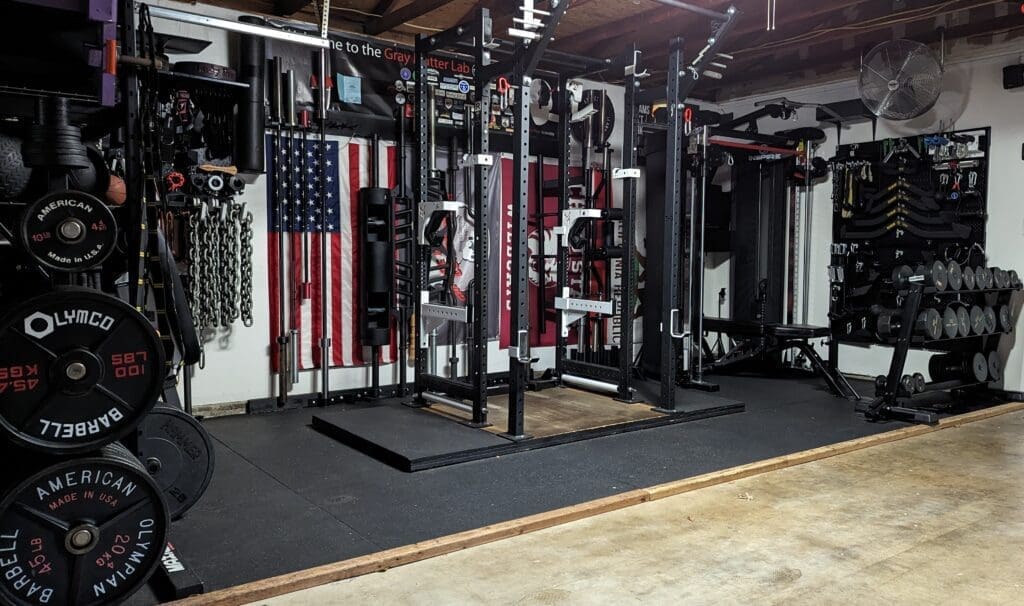

We also built a frame to keep our mats in place. This was a 1×2 board, concrete anchored into the garage floor. You could glue it down if you wanted, or use double sided tape. Up to you. But this gave us a nice separation, and our mats never went anywhere.

Last note, they are typically on sale during Black Friday. So if you can wait, I’d snag them then.

The Best Home Gym Flooring For Most People

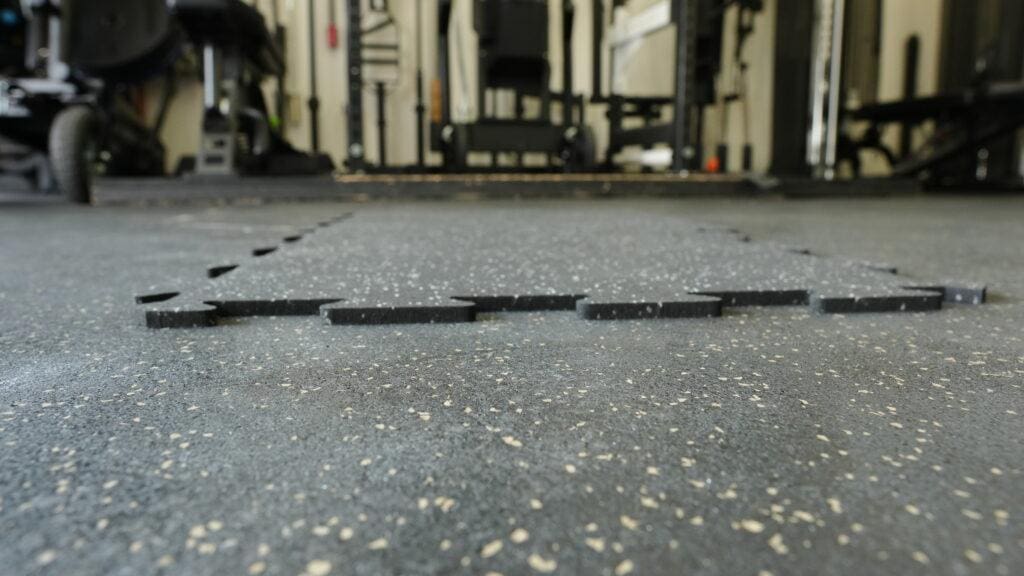

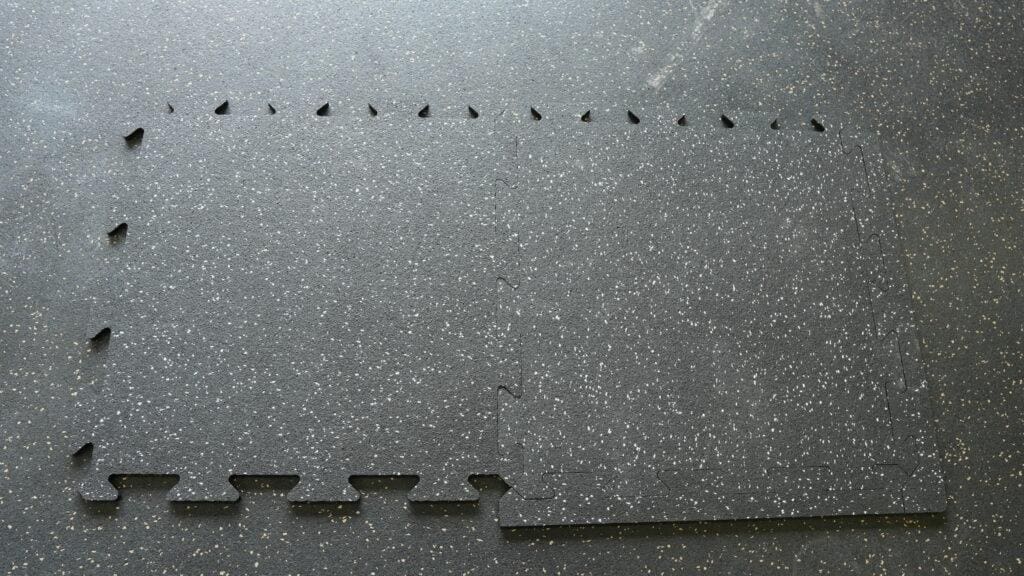

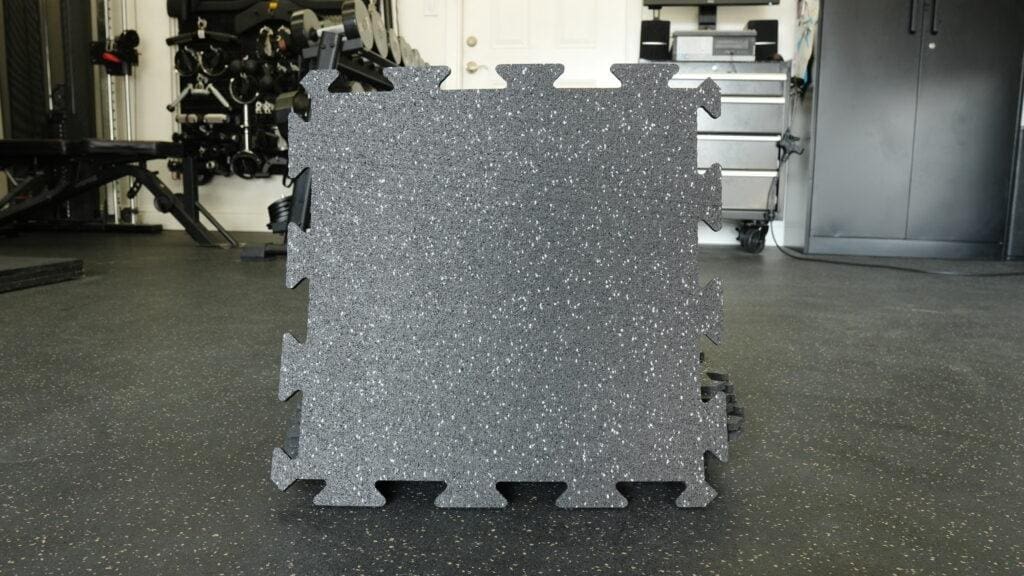

If you want to take it up a notch, without going FULL install, some quality RUBBER interlocking puzzle mats are a great choice. These should be made of the same material as the professional rolled rubber flooring, come in something like 8mm thicknesses, and sometimes even have different color patterns.

The reason why is the best option for most people, is because it sits right in the middle of budget and premium. We get that refined look with the clean seams, matching color scheme, color flecks, smooth floor, and premium density material. We get the benefits for our machines, for our bodies, for our floor. But we don’t have to install with glues. We don’t have to handle, roll out, and install HEAVY rolls to fit to size. Shipping these is DRASTICALLY easier and more affordable.

And if you ever decide to move the flooring to a different room, different space, or different house, this is easy. If you ever damage a piece, you can replace THAT ONE PIECE. Much easier than a huge roll.

You’ll get the VAST majority of the benefits of our Best Premium option, at a lower cost, with easier installation, maintenance and more.

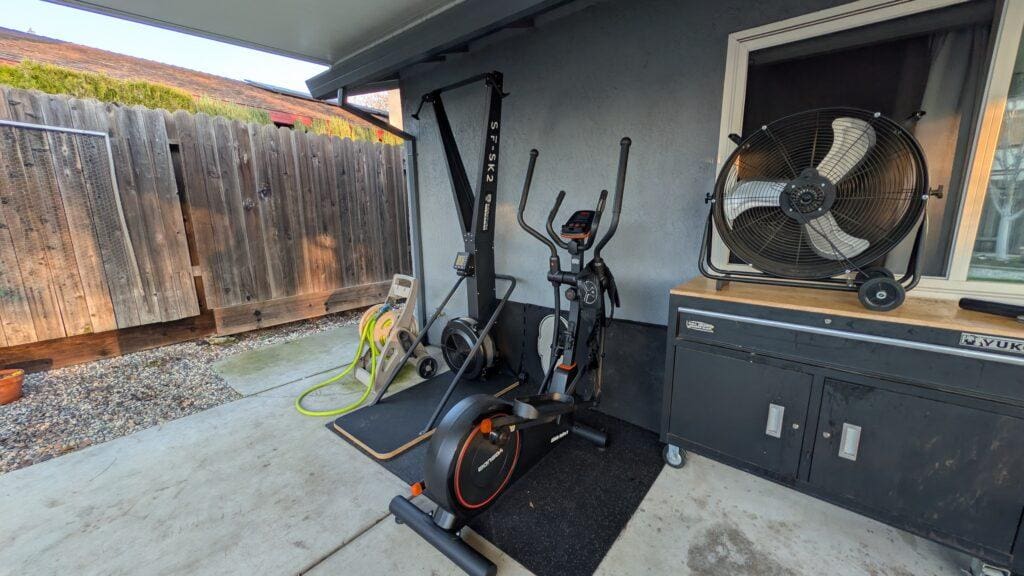

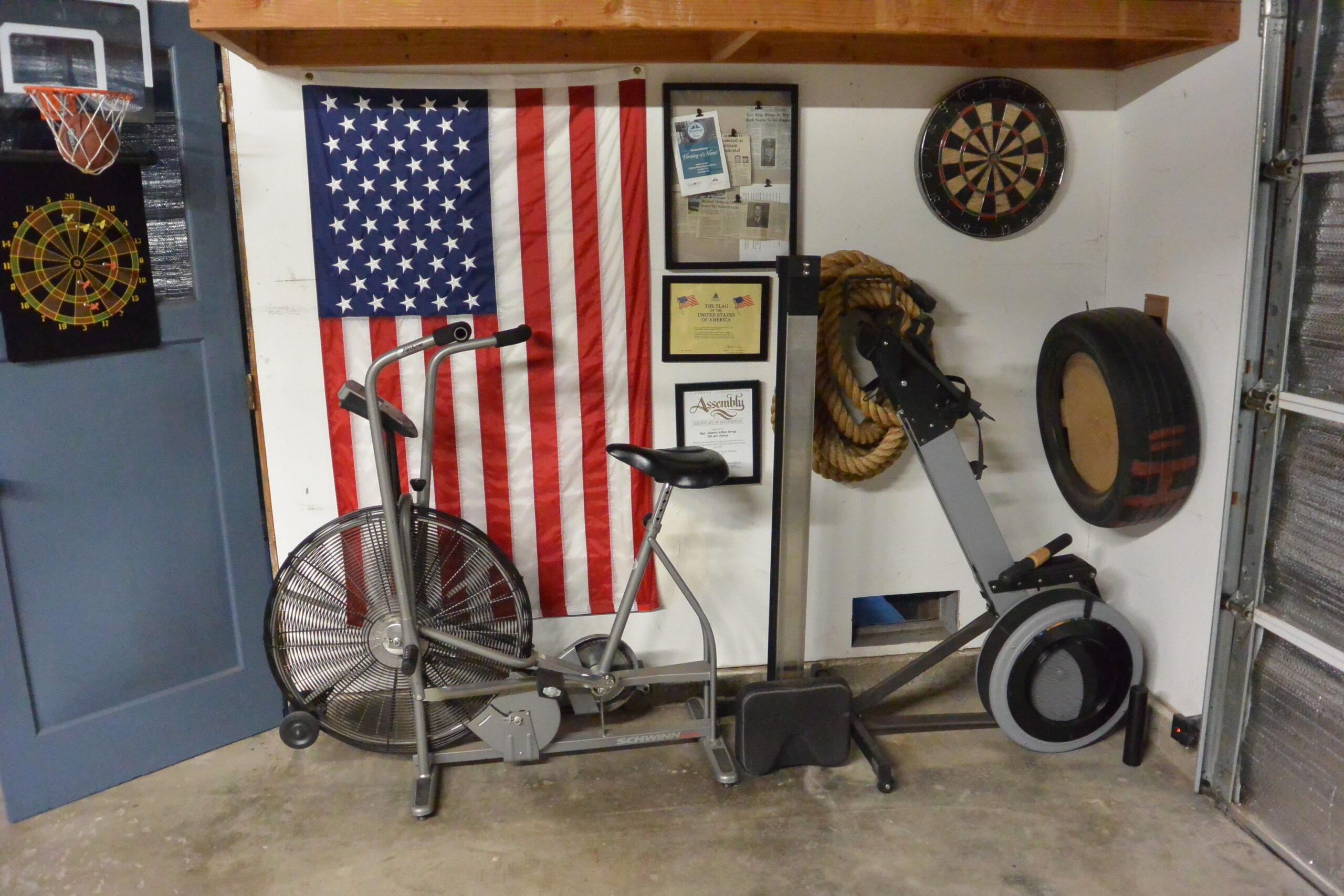

Two great options are to check out either Living.Fit or Freedom Fitness. We have interlocking rubber tiles from Living.Fit in our cardio corner. They live outside, see water from the near bye hose, have had rain on them, sun, gutter gunk from above, BBQ smoke, and more. Occasionally I move the cardio equipment out of the way, move the mats, clean up the ground and let it air out, hose down the mats, let them dry, and then put it all back together. But that is a Spring and Fall type of activity.

The Best Premium Home Gym Flooring

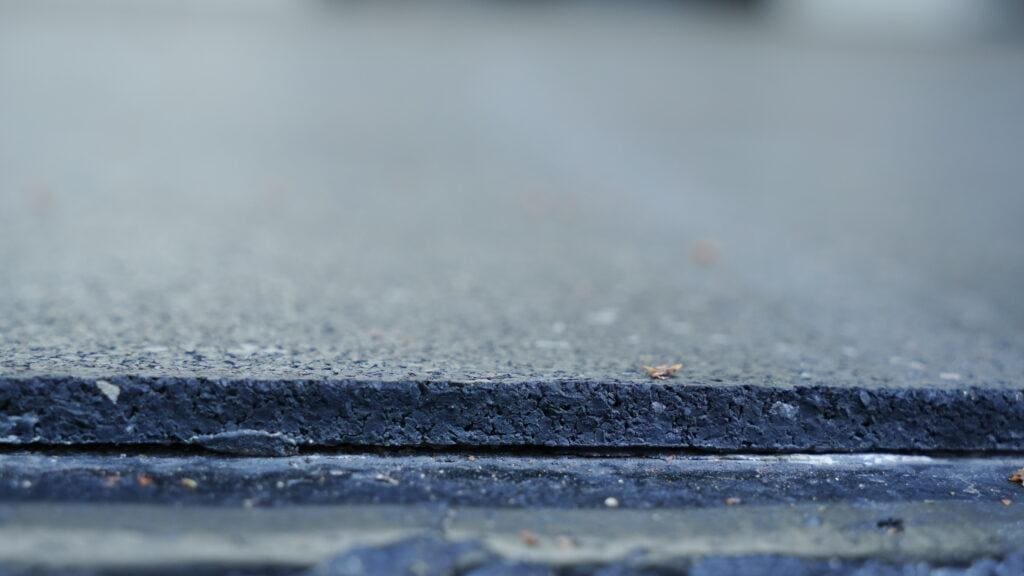

If you want to go for the real deal, nothing says professional gym like rolled rubber flooring. These tend to come in 4ft wide rolls, and in various lengths up to even 50ft or more. As a frame of reference, my rolls were 4ft x 22ft, and it was a legit strongman workout to bring them up from the curb into the garage. And I deadlift over 600lb. If you are a more normal sized human being, you are going to need a hand truck or a few friends (or both) to move them.

These are heavy, hard to ship, and expensive. If you have a local retailer, you can get a deal. If you find a gym closing down and selling theirs, you can get a deal. Otherwise, shipping is going to cost as much (or more) than the flooring itself. Plus you’ll need to install it with urethane glue, and more.

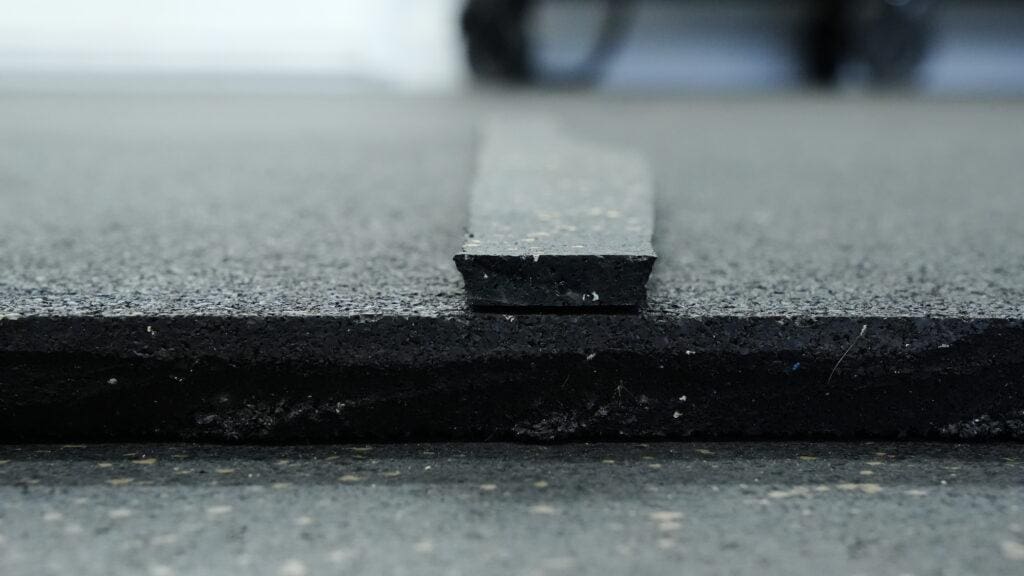

Rolled Rubber Flooring Thickness

They range in thickness, but MOST people are going to land on 8mm. This is enough assuming your flooring is primarily used for purpose of lighter lifting, setting down dumbbells, rolling machines around, that kind of stuff. You are still going to need a dedicated platform for bigger and heavier deadlifts, especially if you are using iron plates. And I’d recommend the same for any heavy olympic lifting work done from overhead. You can substitute a platform for some crash cushions as well.

The thicker you go, the heavier they are, and the more they cost. And I’m not positive that that benefits the majority of lifters. For frame of reference, even with my heavy lifting, I still went with 8mm.

Longevity of Rolled Rubber Flooring

This is going to highly depend on how the flooring is used and taken care of. Ours probably will wear down faster than most due to the car coming in and out. Commercial gyms have high traffic areas, which wear down much faster. On top of that, if you keep your floor clean, clear of debris, and especially rocks and other items that can potentially chip, scratch, or damage the flooring, you’ll get more lifespan out of it. The last piece is to make sure you don’t go too crazy on the cleaning. Flooring should be able to last you a solid decade or more, but again, this depends.

Installation Tips For Rubber Flooring For Your Home Gym

Rolled Rubber comes with a number of fleck patterns, which is awesome for those with a certain aesthetic goal. Because they come in different shapes and sizes, they are meant to be cut. We were able to install mine in, around, and under my hot water heater.

Companies To Buy Rolled Rubber Flooring From

I would first try and find someone local. That shipping cost is NO JOKE. For my friends in California, consider checking out https://www.instagram.com/rubberfloorusa

Here is the owners contact info:

Sam Dabagh
Rubber Flooring USA
(949) 942-1069
1431 E Pomona St. Santa Ana, CA, 92705
RubberFlooringUSA.com

The only reason I didn’t buy from them, was because Ashton at Freedom Fitness was able to get me a great deal on my flooring, work with a delivery driver, and save me a lot of money. It is worth a shot to chat with him regardless of where you are. His Hammer Clad product is what you’ll see in a lot of home gyms due to the high quality and solid price.

There are a ton of options out there if you Google them. I got really close to ordering from a few of those companies, but the shipping always got me in the end. You might have better luck with some of the generic RubberFlooring.com companies. FYI, they own about 8 different websites with similar names, offer the same products, they just change the details a bit.

Wrap Up

Flooring is literally the foundation of your gym. So this topic deserves some consideration. Hopefully you were able to digest what you needed, to make the right decision for YOUR home gym.

For me, Horse Stall Mats did the job for years, but when it was time to upgrade, the choice was easy, as we had a specific need. So make sure you consider your budget, your space, and your needs, so you can grab the right stuff.
